| Kuantitas: | |
|---|---|

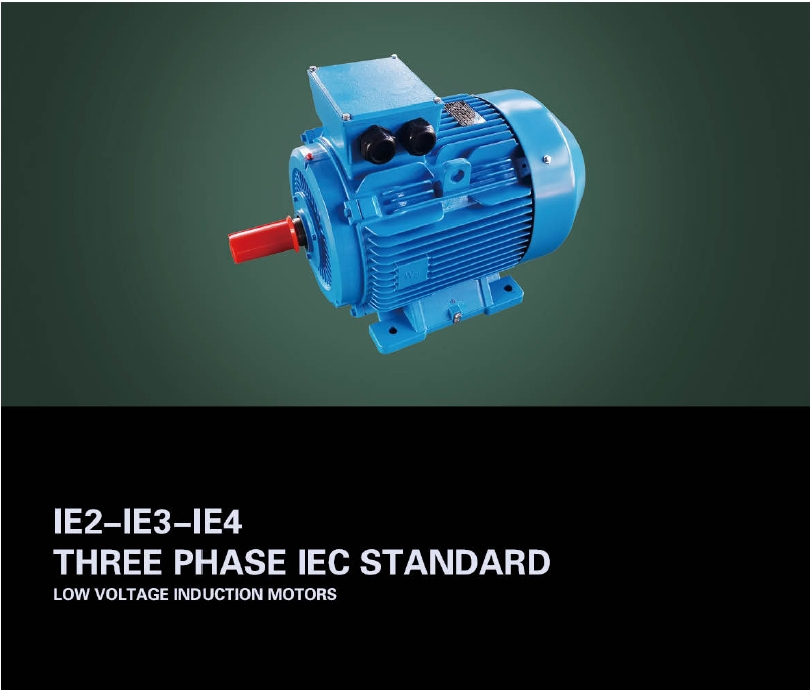

Motor asinkron tiga fase seri YE4 adalah motor casing besi cor bertegangan rendah, dan efisiensinya sesuai dengan IE4.
DATA KINERJA
2 TIANG – KECEPATAN SYNCHRONOUS 3000 RPM 50HZ IE4
4 TIANG – KECEPATAN SYNCHRONOUS 1500 RPM 50HZ IE4
6 TIANG – KECEPATAN SYNCHRONOUS 1000 RPM 50HZ IE4
8 TIANG – KECEPATAN SYNCHRONOUS 750 RPM 50HZ IE4
CONTOH MODEL
| 2 TIANG | 4 TIANG | 6 TIANG | 8 TIANG |
| YE4-80M1-2 | YE4-80M1-4 | YE4-80M1-6 | YE4-80M1-8 |
| YE4-90S-2 | YE4-90S-4 | YE4-90S-6 | YE4-90S-8 |
| YE4-100L-2 | YE4-100L-4 | YE4-100L-6 | YE4-100L-8 |
| YE4-100L-2 | YE4-100L-4 | YE4-100L-6 | YE4-100L-8 |
| YE4-132S1-2 | YE4-132S1-4 | YE4-132S1-6 | YE4-132S1-8 |
| YE4-160M1-2 | YE4-160M1-4 | YE4-160M1-6 | YE4-160M1-8 |
| YE4-180M-2 | YE4-180M-4 | YE4-180M-6 | YE4-180M-8 |
| YE4-200L1-2 | YE4-200L1-4 | YE4-200L1-6 | YE4-200L1-8 |
| YE4-225M-2 | YE4-225M-4 | YE4-225M-6 | YE4-225M-8 |
| YE4-250M-2 | YE4-250M-4 | YE4-250M-6 | YE4-250M-8 |
| YE4-280SM-2 | YE4-280SM-4 | YE4-280SM-6 | YE4-280SM-8 |
| YE4-315SM-2 | YE4-315SM-4 | YE4-315SM-6 | YE4-315SM-8 |
| YE4-315L1-2 | YE4-315L1-4 | YE4-315L1-6 | YE4-315L1-8 |
| YE4-355L1-2 | YE4-355L1-4 | YE4-355L1-6 | YE4-355L1-8 |

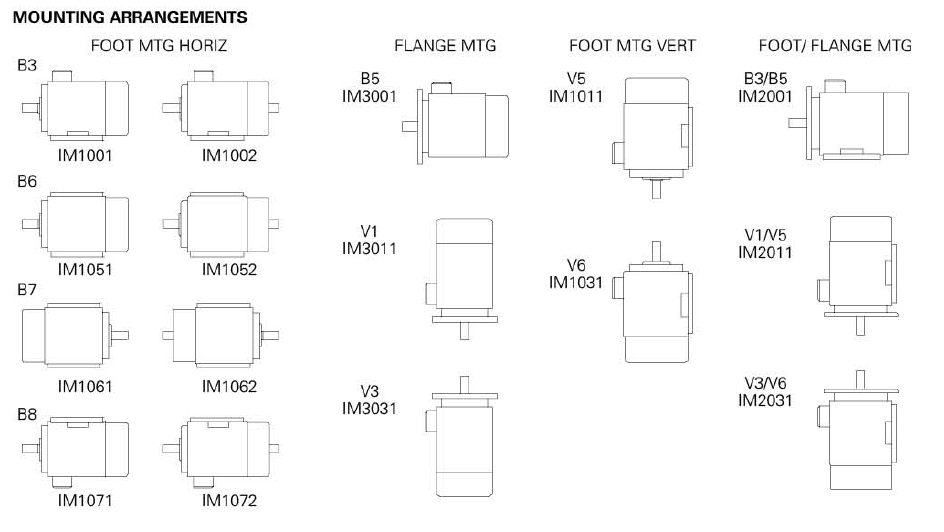

PENGATURAN PEMASANGAN
| KAKI MTG HORIZ | FLANGE MTG | KAKI MTG VERT | KAKI/FLENS MTG |
| B3 IM1001 IM1002 | B5 IM3001 | V5 IM1011 | B3/B5 IM2001 |
| B6 IM1051 IM1052 | V1 IM3011 | V6 IM1031 | V1/V5 IM2011 |
| B7 IM1061 IM1062 | V3 IM3031 | V3/V6 IM2031 | |
| B8 IM1071 IM1072 |
B3-Kaki terpasang
B5-Flange dipasang-horizontal
B3/B5-Kaki dan Flange terpasang
V1-Flange dipasang-vertikal
