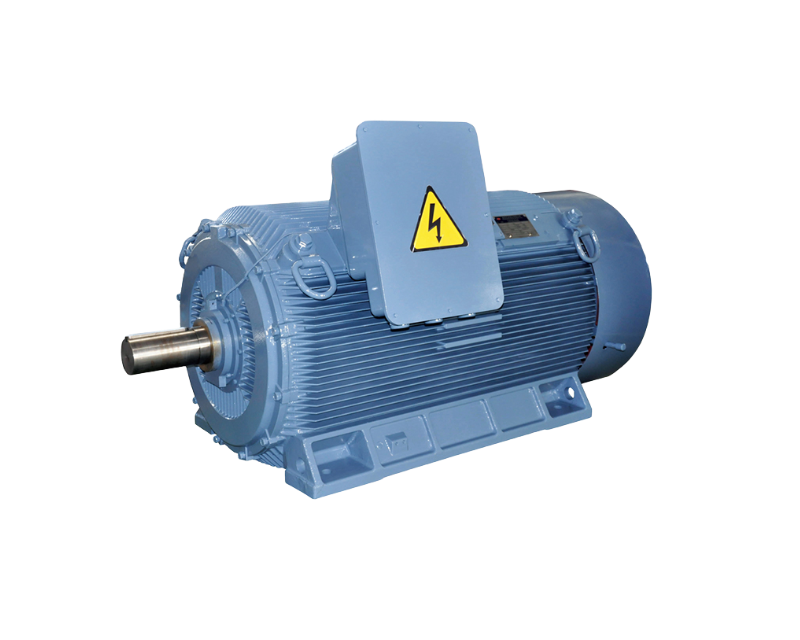

Motor tiga fase seri YE3 adalah motor dengan efisiensi sangat tinggi, dan efisiensinya sesuai dengan IE3.
DATA KINERJA
2 TIANG – 3000 RPM KECEPATAN SYNCHRONOUS 50HZ IE3
4 TIANG – KECEPATAN SYNCHRONOUS 1500 RPM 50HZ IE3
6 TIANG – 1000 RPM KECEPATAN SYNCHRONOUS 50HZ IE3
6 TIANG – 1000 RPM KECEPATAN SYNCHRONOUS 50HZ IE3
CONTOH MODEL
| 2 TIANG | 4 TIANG | 6 TIANG | 8 TIANG |
| YE3-80M1-2 | YE3-80M1-4 | YE3-80M1-6 | YE3-80M1-8 |
| YE3-90S-2 | YE3-90S-4 | YE3-90S-6 | YE3-90S-8 |
| YE3-100L-2 | YE3-100L-4 | YE3-100L-6 | YE3-100L-8 |
| YE3-100L-2 | YE3-100L-4 | YE3-100L-6 | YE3-100L-8 |
| YE3-132S1-2 | YE3-132S1-4 | YE3-132S1-6 | YE3-132S1-8 |
| YE3-160M1-2 | YE3-160M1-4 | YE3-160M1-6 | YE3-160M1-8 |
| YE3-180M-2 | YE3-180M-4 | YE3-180M-6 | YE3-180M-8 |
| YE3-200L1-2 | YE3-200L1-4 | YE3-200L1-6 | YE3-200L1-8 |
| YE3-225M-2 | YE3-225M-4 | YE3-225M-6 | YE3-225M-8 |
| YE3-250M-2 | YE3-250M-4 | YE3-250M-6 | YE3-250M-8 |
| YE3-280SM-2 | YE3-280SM-4 | YE3-280SM-6 | YE3-280SM-8 |
| YE3-315SM-2 | YE3-315SM-4 | YE3-315SM-6 | YE3-315SM-8 |
| YE3-315L1-2 | YE3-315L1-4 | YE3-315L1-6 | YE3-315L1-8 |
| YE3-355L1-2 | YE3-355L1-4 | YE3-355L1-6 | YE3-355L1-8 |
PENGATURAN PEMASANGAN
| KAKI MTG HORIZ | FLANGE MTG | KAKI MTG VERT | KAKI/FLENS MTG |
| B3 IM1001 IM1002 | B5 IM3001 | V5 IM1011 | B3/B5 IM2001 |
| B6 IM1051 IM1052 | V1 IM3011 | V6 IM1031 | V1/V5 IM2011 |
| B7 IM1061 IM1062 | V3 IM3031 | V3/V6 IM2031 | |
| B8 IM1071 IM1072 |
B3-Kaki terpasang

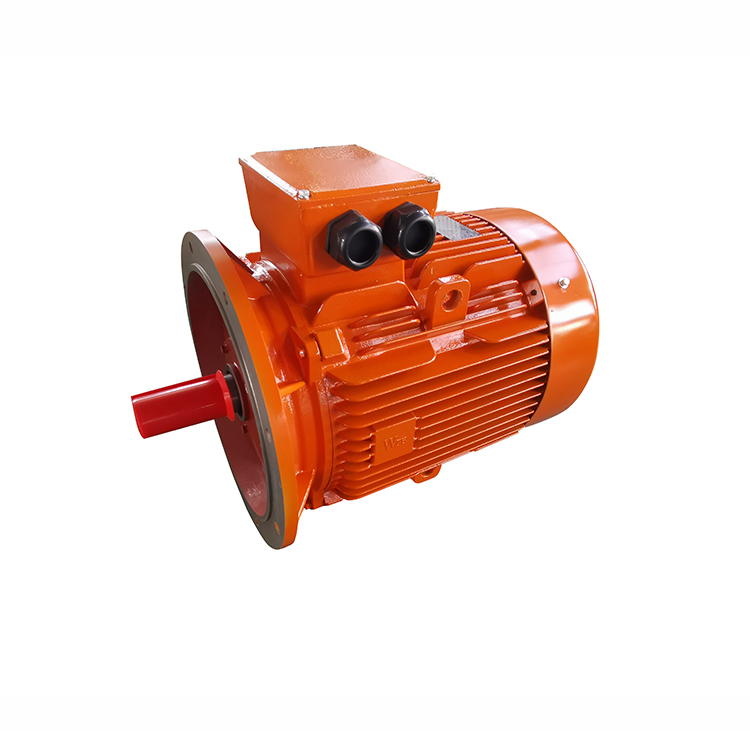

B5-Flange dipasang-horizontal
B3/B5-Kaki dan Flange terpasang
V1-Flange dipasang-vertikal
